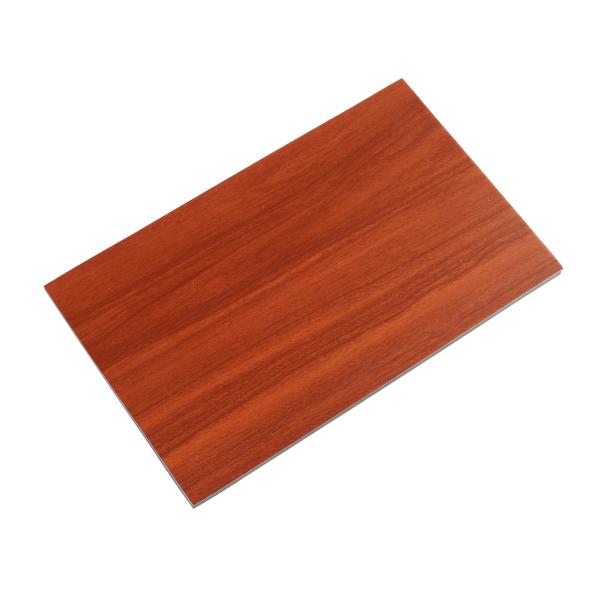

1220x2440mm Wooden Grain Acm Acp Panel Aluminum Composite Panel
The natural look of wood / timber, without the maintenance
difficulties and expense, that’s what our Wood / Timber ACM Panel
are all about. We create the rich look of mahogany, walnut or maple
using a unique image transfer process and the most sophisticated
fluoropolymer paint technology. So we bring the beauty of natural
timber to lightweight, durable, low-maintenance aluminum composite
materials.
For both interior and exterior applications, the Wood / Timber ACM
Panel provides the outstanding natural appearance you’re looking
for, along with the outstanding performance and value you expect
from all aluminum composite panel materials (ACM panel).
Aluminium composite panel is consisted of THREE layers, the surface
and back covers of high strength aluminum alloy sheets and the core
of nontoxic low density polyethylene (PE) sheet. The painting in
the surface and back aluminum sheets are from PPG of USA and Becker
of Sweden.
| Material | Front side | Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or
Polyester resin (PE) roasting painting |
| Core | Non-toxic polyethylene or Plastic fireproof materials(B1/A2) |
| Back side | Aluminium alloy sheet coated with polyester resin painting |
Specification of Aluminum composite panel
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm are available |
| Alu thickness | 0.5mm,0.4mm,0.3mm,0.21mm,0.18mm,0.15mm, 0.12mm,0.1mm,0.06mm |
| Width | 1220mm(regular),1250mm,1300mm,1500mm, 1550mm,1570mm,1575mm(Maximum) |
| Length | 2440mm(regular),and or by customer’s offers,5800mm(Maximum) |
| Standard size | 1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness); |
| Surface Finish | MIRROR ,MARBLE IMITATION,WOOD IMITATION,BRUSH,PVC FILM,PP
FILM,PEARL SERIES,GLOSSY SURFACE,MATT SURFACE |
| Core material | ( Normal non toxic polyethylene, one side unbroken polyethylene,
two side unbroken polyethylene, virgin LDPE, ) B1 non-combustible
mineral filled core,A2 non-combustible mineral filled core |
| Coating | PE COATING,PVDF COATING,FEVE COATING,ANODIZED COATING |
| Standard | According to China National Standard GB/t 17748-2008 |
Features
1.Light weight, high strength, extreme rigidity; superior impact
resistance,
2.Excellent surface flatness and smoothness ;
3.Heat insulation, sound insulation, fire-resistance;
4.Acid-resistance, alkali-resistance, good weather proofing and
non-resonance;
5.Various uniform colors ,can be easily processed and fabricated,
quickly installed;
6.Elegant and magnificent, good flexibility fits various designs;
7.Easily maintenance, simply cleaning.
Applications
1.Constructional exterior curtain walls;
2.Decorative renovation for store-added old buildings;
3.Indoors decoration for interior walls, ceilings, bathrooms,
kitchens and balconies;
4.Gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants
and apartments;
5.Advertisement board, display platforms and signboards;
6.Raw materials in industrial purpose;
7.Materials used for vehicle and boat.
