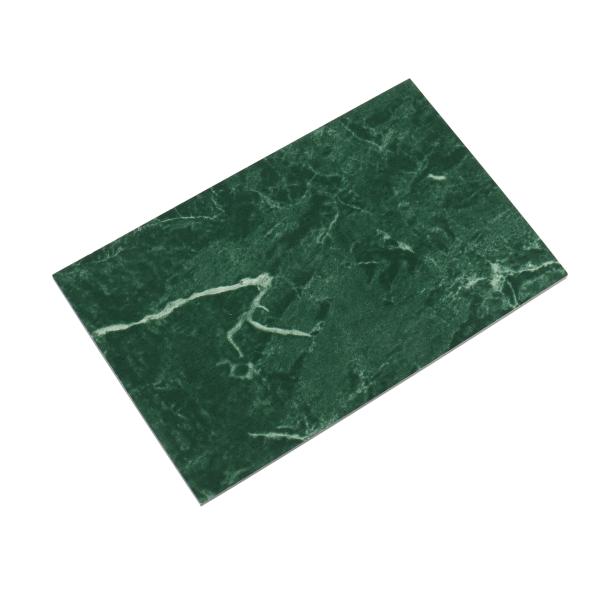

Interior Wall Decoration Marble Grain Aluminium Composite Panel
Dimension of Stone ACM panel:
1)Standard dimension: 4mm x 1220mm x 2440mm(4mm x 4ft x 8ft)
2) Available thickness: 3mm, 4mm and 6mm
3) Available width: 1220mm
4) Available length: Maximum is up to 5800mm; 2440mm, 3050mm and
4050mm are most popular
5) Thickness of aluminum skin: 0.3mm, 0.4mm and 0.5mm
Structure of Stone ACM panel:
1) Front: high strength aluminum sheet coated with PVDF or
polyester coating
2) Core: nontoxic polyethylene (LDPE)
3) Back: high strength aluminum sheet coated with back coating
Aluminium composite panel is consisted of THREE layers, the surface
and back covers of high strength aluminum alloy sheets and the core
of nontoxic low density polyethylene (PE) sheet. The painting in
the surface and back aluminum sheets are from PPG of USA and Becker
of Sweden.
With the striking and stately look of stone, without the
maintenance difficulties and expense, that’s what our Stone/
granite ACM panel are all about. It is produced by a unique image
transfer process and the most sophisticated fluoropolymer paint
technology. So we bring the beauty of natural stone / granite to
lightweight, durable, low-maintenance aluminum composite materials.
The durable protective coatings offer outstanding durability, color
retention and resistance to weather, chemicals, chalking and
marring – so the look you get is a look that lasts. For both
interior and exterior applications, the Stone / granite ACM panel
provides the outstanding natural appearance you’re looking for,
along with the outstanding performance and value you expect from
all aluminum composite panel materials (ACM panel).
| Material | Front side | Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or
Polyester resin (PE) roasting painting |
| Core | Non-toxic polyethylene or Plastic fireproof materials(B1/A2) |
| Back side | Aluminium alloy sheet coated with polyester resin painting |
Specification of Aluminum composite panel
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm are available |
| Alu thickness | 0.5mm,0.4mm,0.3mm,0.21mm,0.18mm,0.15mm, 0.12mm,0.1mm,0.06mm |
| Width | 1220mm(regular),1250mm,1300mm,1500mm, 1550mm,1570mm,1575mm(Maximum) |
| Length | 2440mm(regular),and or by customer’s offers,5800mm(Maximum) |
| Standard size | 1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness); |
| Surface Finish | MIRROR ,MARBLE IMITATION,WOOD IMITATION,BRUSH,PVC FILM,PP
FILM,PEARL SERIES,GLOSSY SURFACE,MATT SURFACE |
| Core material | ( Normal non toxic polyethylene, one side unbroken polyethylene,
two side unbroken polyethylene, virgin LDPE, ) B1 non-combustible
mineral filled core,A2 non-combustible mineral filled core |
| Coating | PE COATING,PVDF COATING,FEVE COATING,ANODIZED COATING |
| Standard | According to China National Standard GB/t 17748-2008 |
Features
1.Light weight, high strength, extreme rigidity; superior impact
resistance,
2.Excellent surface flatness and smoothness ;
3.Heat insulation, sound insulation, fire-resistance;
4.Acid-resistance, alkali-resistance, good weather proofing and
non-resonance;
5.Various uniform colors ,can be easily processed and fabricated,
quickly installed;
6.Elegant and magnificent, good flexibility fits various designs;
7.Easily maintenance, simply cleaning.
Applications
1.Constructional exterior curtain walls;
2.Decorative renovation for store-added old buildings;
3.Indoors decoration for interior walls, ceilings, bathrooms,
kitchens and balconies;
4.Gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants
and apartments;
5.Advertisement board, display platforms and signboards;
6.Raw materials in industrial purpose;
7.Materials used for vehicle and boat.
